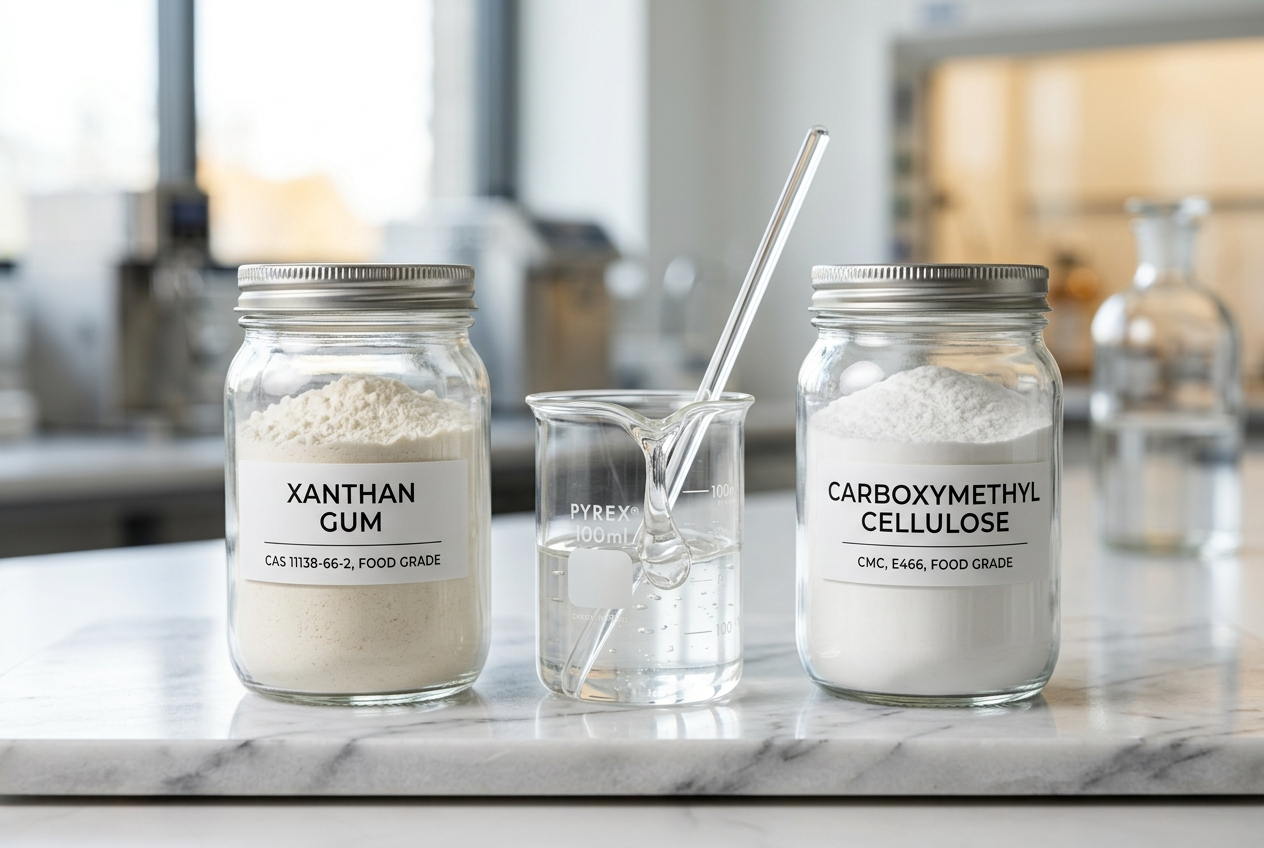

Xanthan Gum Vs CMC: Expert Comparison for Food Industry

Selecting the right thickener is one of the most critical decisions in food product development. The choice affects not only texture and stability but also production efficiency, cost, and ultimately, consumer acceptance. Two of the most widely used thickeners in the food industry are xanthan gum and carboxymethyl cellulose (CMC). Understanding their differences empowers manufacturers to make informed decisions that optimize their formulations.

As a trusted hydrocolloid supplier with extensive experience helping food manufacturers optimize their products, UnionChem provides this comprehensive comparison to guide your selection process.

Understanding the Basics: What Are These Thickeners?

Before diving into comparisons, let's establish clear understanding of each thickener:

Xanthan Gum

Xanthan gum is a microbial polysaccharide produced through the fermentation of glucose or sucrose by the bacterium Xanthomonas campestris. This fermentation-derived hydrocolloid has been used in food applications since the 1960s and has earned FDA GRAS status and EU approval as food additive E415.

At UnionChem, we specialize in producing premium-grade xanthan gum that delivers consistent viscosity, excellent stability, and superior performance across diverse applications. Our technical team works with manufacturers worldwide to ensure optimal results in their specific formulations.

Carboxymethyl Cellulose (CMC)

CMC, also known as cellulose gum or sodium carboxymethyl cellulose, is a cellulose derivative produced by chemically modifying natural cellulose from plant sources (typically wood pulp or cotton linters). The carboxymethyl groups introduced during processing make the normally insoluble cellulose water-soluble.

CMC is classified as food additive E466 and is widely used across food, pharmaceutical, and industrial applications. Its versatility and cost-effectiveness have made it a staple ingredient in many manufacturing facilities.

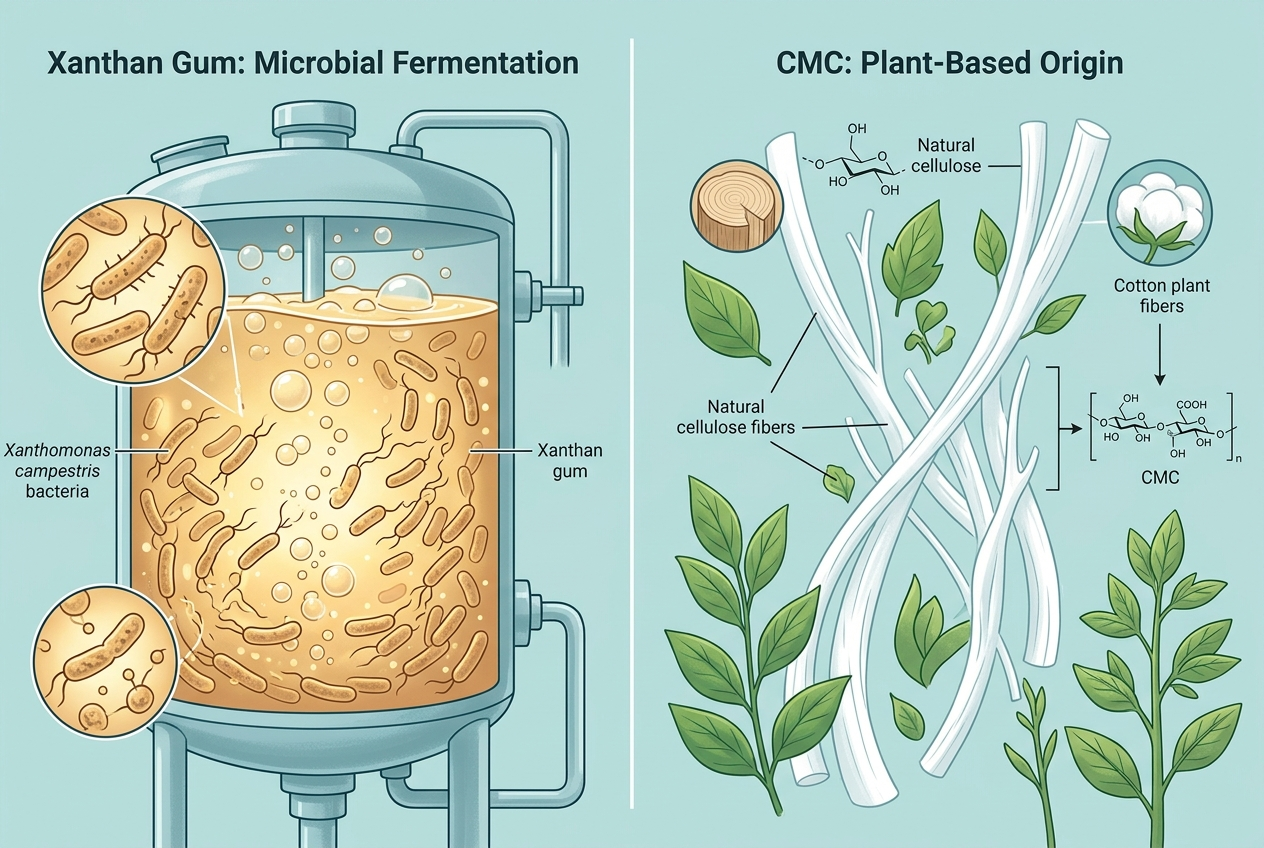

Chemical Origin and Structure

Understanding the fundamental differences in origin and structure helps explain the functional variations between these thickeners:

Xanthan Gum Structure

Xanthan gum features a cellulose backbone with trisaccharide side chains containing mannose and glucuronic acid. This unique structure creates a rigid, helical conformation that contributes to its pseudoplastic behavior and exceptional stability. The pyruvate content on the side chains significantly influences the gum's performance characteristics.

CMC Structure

CMC consists of a cellulose polymer backbone with carboxymethyl groups (-CH2COOH) substituted on the hydroxyl groups of glucose units. The degree of substitution (DS) - the average number of carboxyl groups per glucose unit - critically affects CMC's solubility, viscosity, and functional properties. Food-grade CMC typically has a DS between 0.6 and 0.95.

Solubility and Hydration Properties

Solubility characteristics significantly impact processing requirements and final product quality:

Xanthan Gum Solubility

Xanthan gum dissolves readily in both hot and cold water, though hydration rates vary with temperature and shear conditions. Key characteristics include:

• Rapid hydration in cold water (within 30-60 minutes)

• Full viscosity development within 24 hours at room temperature

• Faster hydration with higher shear mixing

• Forms clear to slightly hazy solutions

UnionChem's xanthan gum products feature optimized granulation for improved dispersibility and reduced lump formation during mixing.

CMC Solubility

CMC demonstrates excellent solubility in water across various temperatures:

• Highly soluble in cold water, making it ideal for applications requiring room-temperature processing

• Faster hydration at elevated temperatures

• Solution clarity varies with degree of substitution

• Higher DS grades provide better clarity

Viscosity and Rheological Properties

Rheological behavior determines how these thickeners perform during processing and in the final product:

Xanthan Gum Viscosity

Xanthan gum produces highly pseudoplastic (shear-thinning) solutions:

• High low-shear viscosity provides excellent suspension and stabilization

• Viscosity drops dramatically under shear, facilitating pumping and mixing

• Rapid viscosity recovery when shear is removed

• Maintains viscosity across wide temperature and pH ranges

• Provides a slightly elastic, cohesive mouthfeel

At UnionChem, our standard xanthan gum delivers 1,200-1,700 cP viscosity at 1% concentration in 1% KCl solution, with specialty grades available for specific requirements.

CMC Viscosity

CMC offers different rheological characteristics:

• Newtonian behavior at low concentrations (less shear-dependent)

• More pseudoplastic behavior at higher concentrations

• Higher intrinsic viscosity than xanthan gum in many formulations

• Creates smoother, more gel-like textures

• Less elastic mouthfeel compared to xanthan gum

pH Stability: A Critical Distinction

Perhaps the most significant practical difference between these thickeners is their pH stability range:

Xanthan Gum pH Performance

Xanthan gum maintains functionality across a pH range of approximately 4-10, with optimal performance in the neutral to slightly acidic range (pH 5-8). Performance degrades significantly below pH 4, limiting its use in highly acidic products without careful formulation.

CMC pH Performance

CMC demonstrates exceptional stability across an extremely wide pH range of 1-13. This broad tolerance makes CMC particularly valuable for:

• Highly acidic food products (pH below 4)

• Alkaline applications requiring stability at high pH

• Products that may experience pH variations during processing or storage

This pH stability advantage makes CMC the preferred choice for applications like highly acidic beverages, salad dressings with vinegar, and certain pharmaceutical preparations.

Salt Compatibility

Both thickeners interact differently with various salts present in food formulations:

Xanthan Gum Salt Tolerance

Xanthan gum maintains excellent viscosity in solutions containing high concentrations of various salts, including sodium chloride, potassium chloride, calcium chloride, and magnesium salts. This salt tolerance makes xanthan gum particularly valuable for:

• Condiments and sauces with high salt content

• Processed meat products with salt-based curing systems

• Dairy applications with mineral content

• Some bakery applications

CMC Salt Interactions

CMC's behavior with salts varies based on the type and concentration:

• Generally compatible with many salts at moderate concentrations

• May show viscosity variations with calcium and magnesium ions at high concentrations

• Often provides synergistic effects when combined with other hydrocolloids

• Particularly effective in systems requiring high electrolyte content

Temperature Stability

Heat resistance affects processing options and shelf stability:

Xanthan Gum Heat Performance

Xanthan gum demonstrates excellent temperature stability:

• Maintains viscosity through heating to 100°C and above

• Suitable for pasteurization and hot-fill processes

• Freeze-thaw stability makes it ideal for frozen products

• Viscosity remains stable through multiple freeze-thaw cycles

• Some viscosity reduction at sustained high temperatures

CMC Heat Performance

CMC also offers good temperature stability:

• Stable through typical food processing temperatures

• Solution viscosity may decrease slightly with prolonged heating

• Generally maintains functionality in pasteurization applications

• Some grades show good freeze-thaw stability, though performance varies

Texture and Mouthfeel Characteristics

Consumer perception depends significantly on sensory properties:

Xanthan Gum Texture Profile

Xanthan gum creates distinctive textural characteristics:

• Slightly slippery or slimy mouthfeel (often described as "viscous")

• Elastic, cohesive quality in solutions

• Excellent coating and cling properties

• Provides body without excessive thickness at low concentrations

• Creates stable suspensions of particles

CMC Texture Profile

CMC produces different sensory characteristics:

• Smoother, more neutral texture

• Less slippery mouthfeel compared to xanthan gum

• More gel-like and less elastic

• Often preferred in applications where neutral texture is desired

• Provides creamier mouthfeel in dairy applications

Application-Specific Recommendations

Based on the properties outlined above, here are specific application recommendations:

Beverages

Choose Xanthan Gum When:

• Suspending fruit pulp or particles in juices

• Creating stable emulsions in flavored drinks

• Needing freeze-thaw stability in frozen beverages

• Formulating plant-based milk alternatives

Choose CMC When:

• Working with highly acidic juice drinks (pH below 4)

• Requiring neutral flavor carry-through

• Needing cost-effective thickening for high-volume production

• Creating clear beverages

Dairy Products

Choose Xanthan Gum When:

• Ice cream requires ice crystal control and freeze-thaw stability

• Yogurt needs syneresis control and texture enhancement

• Plant-based dairy alternatives require stabilization

• Suspension of fruit particles in yogurt drinks

Choose CMC When:

• Smooth, creamy texture is paramount

• Cost efficiency is a primary concern

• Moderate pH conditions apply

• Combined with other stabilizers in cheese applications

Sauces and Dressings

Choose Xanthan Gum When:

• Oil-in-water emulsions require stability

• Hot applications (sauces served warm) are involved

• Excellent cling to food surfaces is needed

• Complex flavor profiles must not be masked

Choose CMC When:

• Highly acidic dressings (vinegar-based) are formulated

• Cost efficiency is critical for condiment production

• Clear or translucent appearance is desired

• Moderate temperature processing only

Bakery and Gluten-Free Products

Choose Xanthan Gum When:

• Gluten-free applications require binding and structure

• Moisture retention and shelf life extension are priorities

• Frozen dough products require stability

• Combined with other hydrocolloids for synergistic effects

Choose CMC When:

• Water retention in baked goods is the primary concern

• Cost-effective solutions are needed for high-volume production

• Moderate functionality requirements apply

• Combined with other ingredients in specific applications

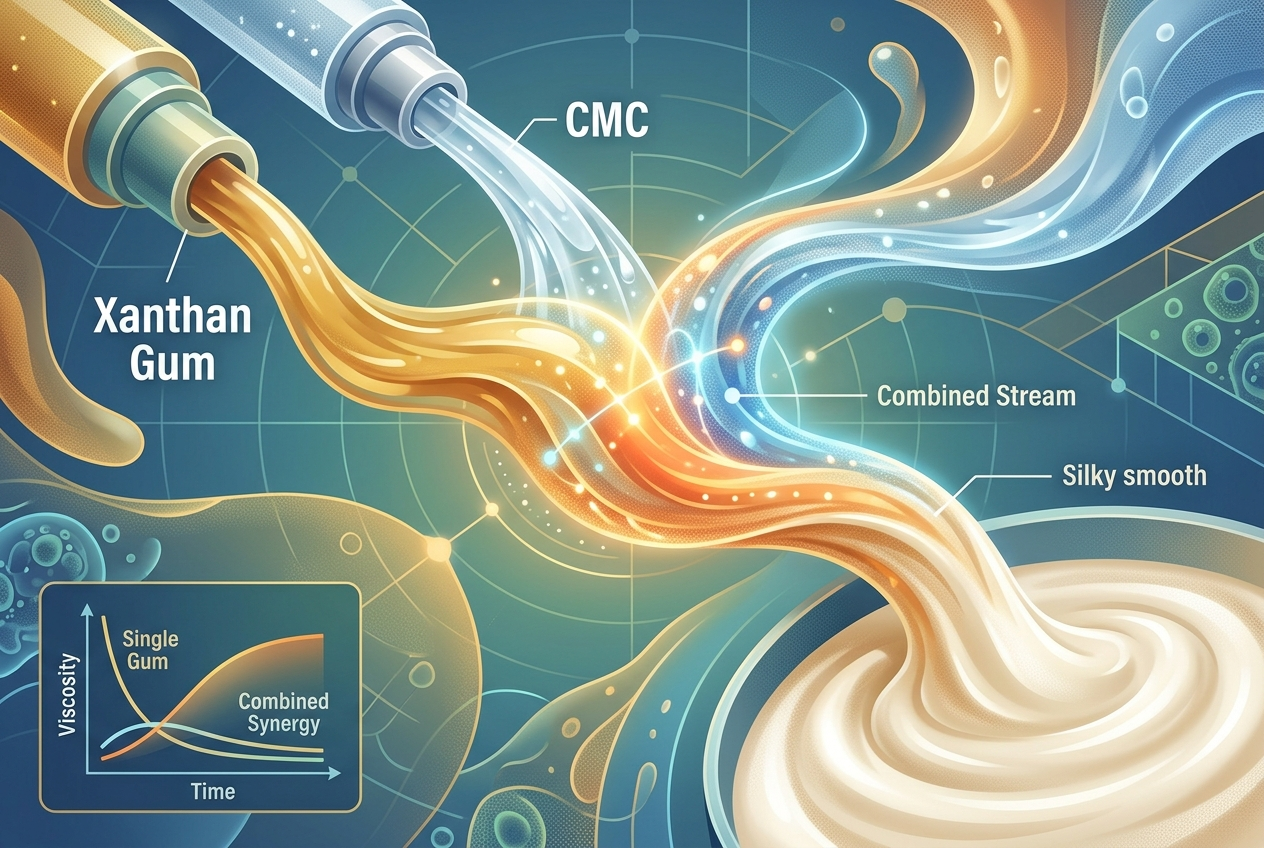

Synergistic Combinations

Both thickeners can work effectively with each other and with other hydrocolloids:

Xanthan Gum Combinations

Xanthan gum shows excellent synergy with:

• Guar gum: Creates significantly higher viscosity than either gum alone

• Locust bean gum: Produces elastic gels with unique textural properties

• CMC: Can enhance texture and stability in certain applications

• Pectin: Provides gel formation in acidic conditions

CMC Combinations

CMC works synergistically with:

• Xanthan gum: Can enhance overall stabilization

• Carrageenan: Provides gel formation for specific applications

• Locust bean gum: Creates synergistic viscosity increases

• Alginate: Used in combined thickening systems

UnionChem's technical team can recommend optimal combinations for your specific formulation requirements.

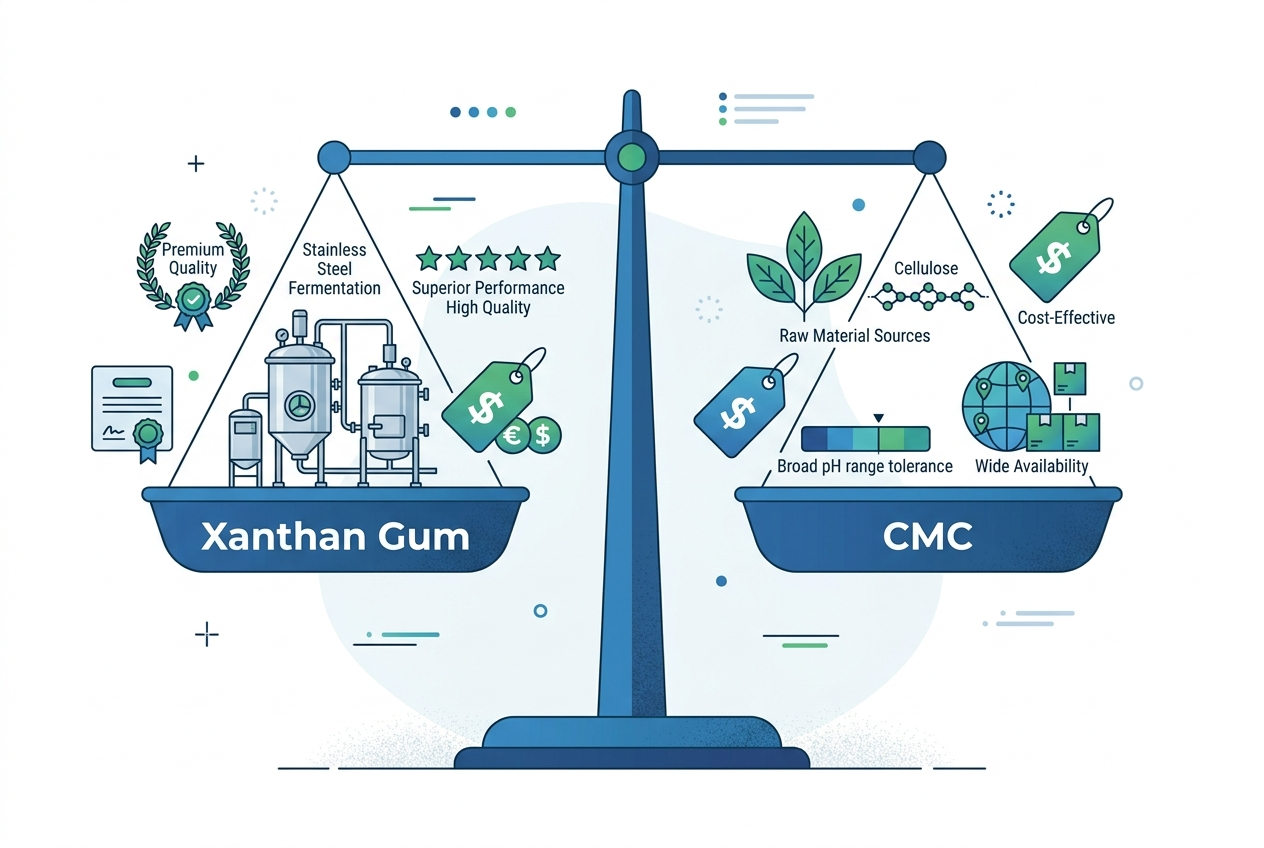

Cost Considerations

Budget constraints influence many formulation decisions:

Xanthan Gum Pricing

Xanthan gum typically commands a higher price point due to:

• More complex fermentation-based production process

• Premium functional properties

• Superior performance in demanding applications

• Higher purity and consistency standards

However, xanthan gum's efficiency at low concentrations often makes it cost-effective despite higher per-unit pricing.

CMC Pricing

CMC generally offers a more economical option:

• Cellulose-based production is less expensive

• Availability from multiple global sources

• Suitable for cost-sensitive applications

• Effective at moderate concentration levels

UnionChem supplies both thickeners at competitive prices, with volume discounts available for qualifying orders.

Quality and Supplier Selection

The thickener's origin and quality significantly impact formulation success:

What to Look for in Xanthan Gum Suppliers

UnionChem delivers premium xanthan gum characterized by:

• Consistent viscosity specifications (1,200-1,700 cP typical)

• Multiple mesh sizes (80 mesh, 200 mesh) for application flexibility

• Comprehensive quality testing including microbial analysis

• International certifications (FDA, Kosher, Halal)

• Technical support for formulation optimization

• Reliable supply from established manufacturing facilities

What to Look for in CMC Suppliers

Key CMC quality indicators include:

• Consistent degree of substitution (DS) specifications

• Low batch-to-batch viscosity variation

• Clean label compatibility options

• Appropriate purity for intended application

• Technical documentation and COA availability

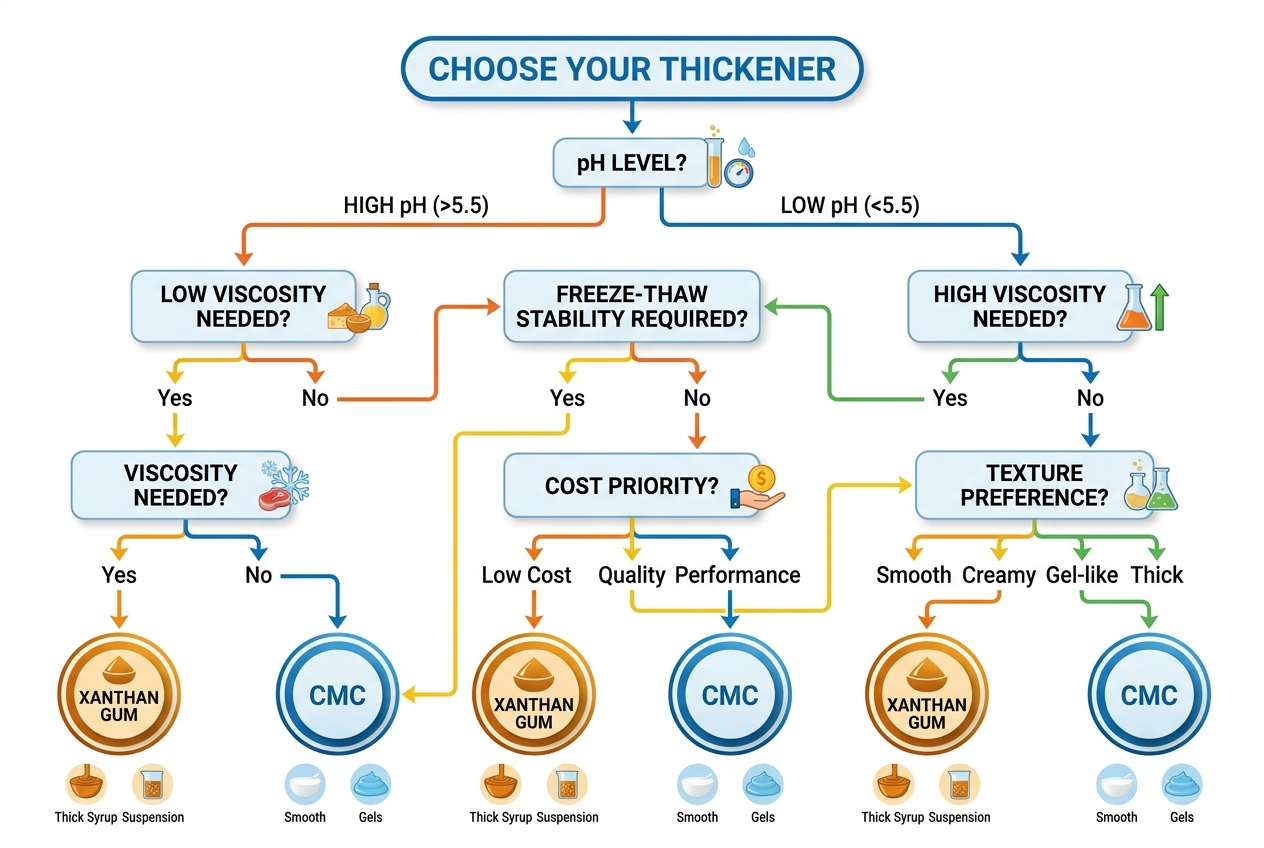

Making Your Final Selection

Use this decision framework to guide your choice:

Choose Xanthan Gum If:

• Your application requires excellent freeze-thaw stability

• Broad pH stability (5-10 range) meets your needs

• Superior emulsification and suspension properties are essential

• Texture requires slight elasticity and cling

• Premium quality justifies higher pricing

• You need proven performance in complex formulations

Choose CMC If:

• Working with highly acidic products (pH below 4)

• Cost efficiency is the primary consideration

• Neutral, smooth texture is preferred

• High salt content affects your formulation

• Simple processing requirements apply

• You need a versatile, widely available thickener

Consider Both If:

• Formulating complex multi-component products

• Specific textural requirements demand hybrid solutions

• Cost-performance optimization is the goal

• Multiple application requirements exist

• Flexibility in formulation development is needed

Conclusion

Both xanthan gum and CMC offer valuable functional properties that make them essential ingredients in modern food manufacturing. The choice between them depends on your specific application requirements, processing conditions, and performance expectations.

Choose xanthan gum when you need superior stability, freeze-thaw performance, and emulsification capabilities, and when your formulation benefits from its elastic, clinging texture characteristics.

Choose CMC when pH stability across a wide range is critical, when cost efficiency is paramount, and when smooth, neutral textures support your product concept.

Consider both for complex formulations that can leverage the synergistic benefits of combining these versatile hydrocolloids.

UnionChem specializes in both xanthan gum and CMC production, allowing us to provide objective recommendations based on your specific needs rather than product limitations. Our technical team supports customers worldwide with formulation assistance, product samples, and responsive service.

Ready to discuss which thickener best suits your application? Contact UnionChem for samples, technical specifications, and competitive pricing. Let our expertise help you optimize your formulations.

Quick Reference Comparison Table

Frequently Asked Questions

Can xanthan gum and CMC be used together?

Yes, combining these thickeners can provide synergistic benefits. UnionChem's technical team can recommend optimal ratios for your specific application.

Which thickener is better for acidic foods?

CMC performs better in highly acidic products (pH below 4). For moderately acidic applications (pH 4-6), xanthan gum can work well with proper formulation.

What's the shelf life of these thickeners?

Both xanthan gum and CMC maintain functionality for 24-36 months when stored in original sealed packaging in cool, dry conditions.

Are these thickeners suitable for clean-label products?

Both can be labeled as "xanthan gum" or "sodium carboxymethyl cellulose" or "cellulose gum" on ingredient declarations. UnionChem offers organic-certified options for both thickeners.

Which thickener is better for ice cream?

Xanthan gum is generally preferred for ice cream due to superior ice crystal control and freeze-thaw stability, though CMC may be used in combination for specific textural effects.

Do these thickeners affect flavor?

At normal usage levels, neither significantly impacts flavor. Some formulations may detect very slight differences in flavor release characteristics.

What's the typical usage rate for these thickeners?

Both are typically used at 0.05-0.5% depending on desired viscosity and application requirements. UnionChem provides usage guidelines specific to your application. Our technical team can recommend optimal concentrations based on your product requirements and processing conditions.

What's the minimum order quantity for these thickeners?

UnionChem offers flexible MOQ options to support businesses of all sizes. Contact our sales team to discuss your volume requirements and find competitive pricing for your xanthan gum and CMC needs.

Can UnionChem supply both xanthan gum and CMC from one source?

Yes. As a comprehensive hydrocolloid supplier, UnionChem manufactures both xanthan gum and CMC, allowing you to consolidate your supply chain and work with a single trusted partner for all your thickening requirements.

Can these thickeners replace gelatin?

Xanthan gum can serve as a vegetarian gelatin alternative in many applications. CMC provides thickening but less gel formation capability than xanthan gum.

This comparison guide is provided by UnionChem, a professional manufacturer and supplier of natural hydrocolloids including xanthan gum, CMC, and other food-grade thickeners. Contact us for samples, technical specifications, and expert formulation support.

Written by Arella Sun (孙晓萍), General Manager

With over 26 years of experience in the hydrocolloid and specialty chemicals industry, Arella Sun has led UnionChem to become a trusted supplier of premium food-grade hydrocolloids to manufacturers in over 50 countries. Her expertise spans product development, quality assurance, and technical support for applications ranging from bakery and dairy to beverages and prepared foods. Arella has helped hundreds of food companies navigate thickener selection, providing formulation guidance that optimizes both product performance and cost efficiency.
